Philip Goldway CTG7 fetal monitor
Λεπτομέρειες:
| Τόπος καταγωγής: | Πρωτότυπο |
| Μάρκα: | philip |
| Αριθμό μοντέλου: | CTG7 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 τεμ |
|---|---|
| Τιμή: | Negotiation, pls contact me |
| Συσκευασία λεπτομέρειες: | Κουτί από χαρτόνι |
| Χρόνος παράδοσης: | Εντός 1-2 εργάσιμων ημερών μετά την επιβεβαίωση της πληρωμής |
| Όροι πληρωμής: | T/T, Western Union |
| Δυνατότητα προσφοράς: | 10 |
|
Λεπτομερής ενημέρωση |
|||
| Μοντέλο: | CTG7 | Μάρκα: | Γκόλντγουεϊ |
|---|---|---|---|
| Κατάσταση: | Καλός | Εγγύηση: | 90 Ημέρες |
| Επισημαίνω: | Philip Goldway CTG7 fetal monitor,CTG7 fetal monitor with warranty,fetal monitor parts for hospitals |
||
Περιγραφή προϊόντων

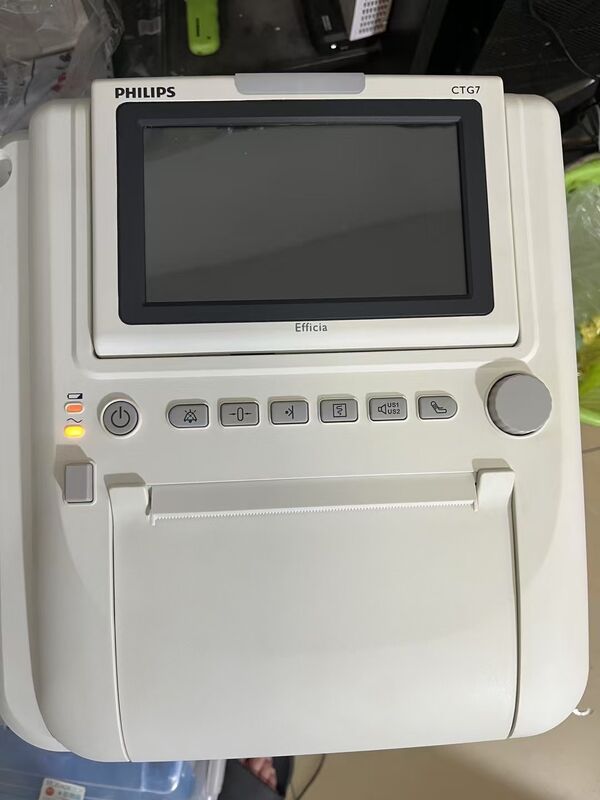

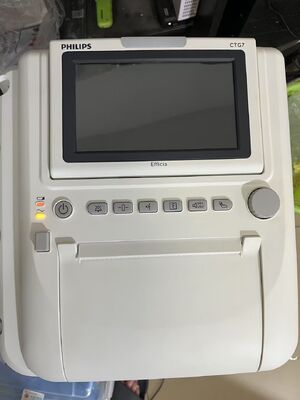

Philip Goldway CTG7 fetal monitor
1. General Information
- Model: Philip Goldway CTG7
- Device Type: Combined fetal and maternal monitor
- Display: 7-inch TFT color LCD, 800×480 WVGA, 0–90° adjustable angle
- Operation: Navigation knob + backlit keys, integrated probe holder & carry handle
- Recorder: 150 mm width thermal printer; paper speed: 1 / 2 / 3 cm/min
- Data Storage: 72-hour trend review and printing; 800 sets of NIBP data storage
- Twin Pregnancy: Optional twin monitoring with offset dual FHR waveform display
2. Fetal Monitoring Parameters
FHR (Fetal Heart Rate, Ultrasound)
- Ultrasound Frequency: 1 MHz pulsed wave
- Transducer: 9-element wide beam, IPX8 waterproof (1m / 5h)
- Measurement Range: 50–240 bpm
- Accuracy:
- 50–210 bpm: ±2 bpm
- 211–240 bpm: ±4 bpm
- Ultrasound Safety: MI ＜ 1, TI ＜ 1, Ispta ＜ 100 mW/cm²
TOCO (Uterine Contraction)
- Measuring Range: 0–100 TOCO unit
- Accuracy: Non-linear error ＜ ±5%
- Transducer: External pressure sensor, IPX8 waterproof grade
FM (Fetal Movement)
- Automatic fetal movement detection + manual marker with prompt tone
- Automatic FM waveform switchable for optimized TOCO view
3. Optional Maternal Monitoring Parameters
MECG / Maternal Heart Rate
- Lead Mode: 3-lead (I, II, III)
- Heart Rate Range: 30–240 bpm
- Display: MECG waveform + real-time HR value, waveform printing supported
SpO₂ / Pulse Rate
- Technology: Philip FAST SpO₂, anti-motion & low perfusion adaptation
- SpO₂ Range: 0–100%
- PR Range: 30–240 bpm
- Audible and visual alarm function
NIBP
- Working Mode: Manual / Auto / Continuous
- Pressure Range:
- Systolic: 60–240 mmHg
- Diastolic: 30–180 mmHg
- Data Review: Up to 800 historical records
4. Alarm & Safety
- Alarm System: 3-level audible & visual alarm
- Alarm Items: Parameter out of limit, signal loss, low battery and system fault
- Compliance: Meets international medical electrical safety standards
5. Physical & Electrical Specifications
- Dimensions: 340 × 310 × 120 mm
- Weight: Approx. 5.5 kg (excluding battery)
- Power Supply: AC 100–240 V, 50/60 Hz; rechargeable lithium battery optional

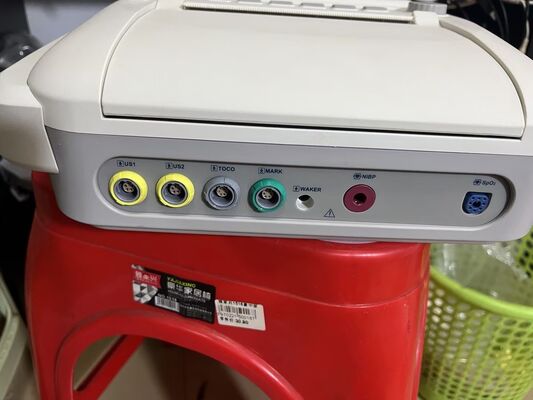

- Interfaces: Dual ultrasound ports, TOCO port, MECG, SpO₂, NIBP, VGA, USB
6. Standard & Optional Accessories
- Standard: Ultrasound transducer, TOCO transducer, fetal movement marker
- Optional: MECG module, SpO₂ module, NIBP module, twin monitoring kit, fetal stimulator
